70-81 Camaro/Firebird / 75-79 Nova Frame
MADE IN THE USA
Basic Frame

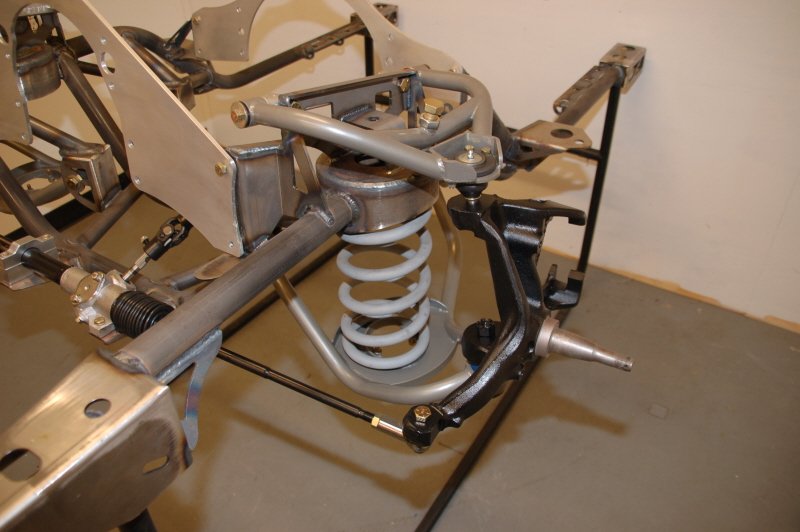

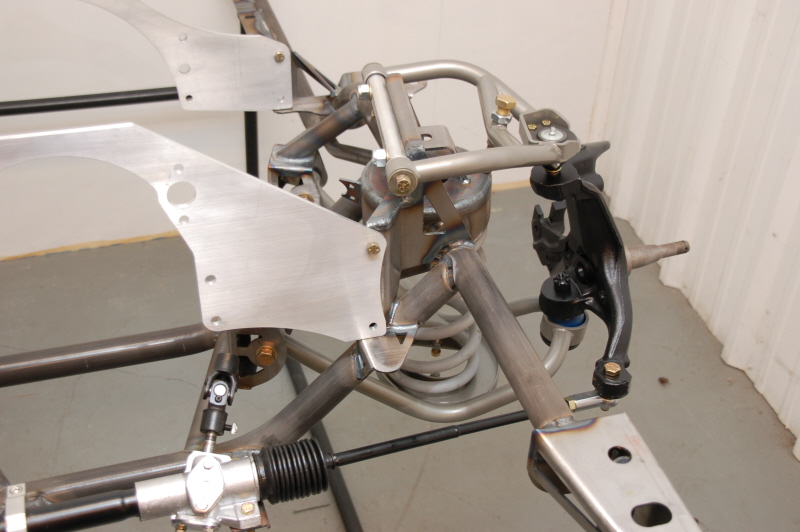

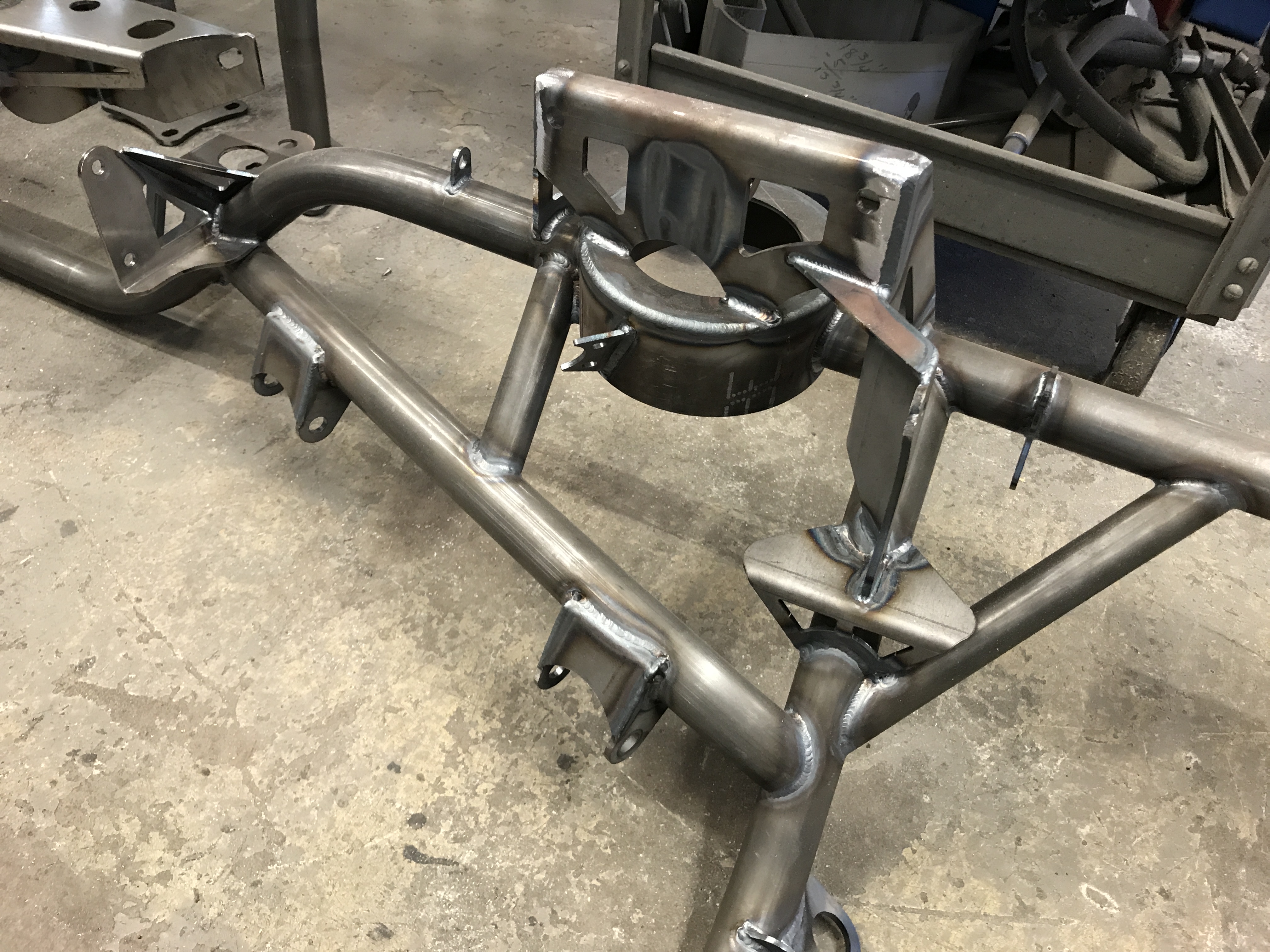

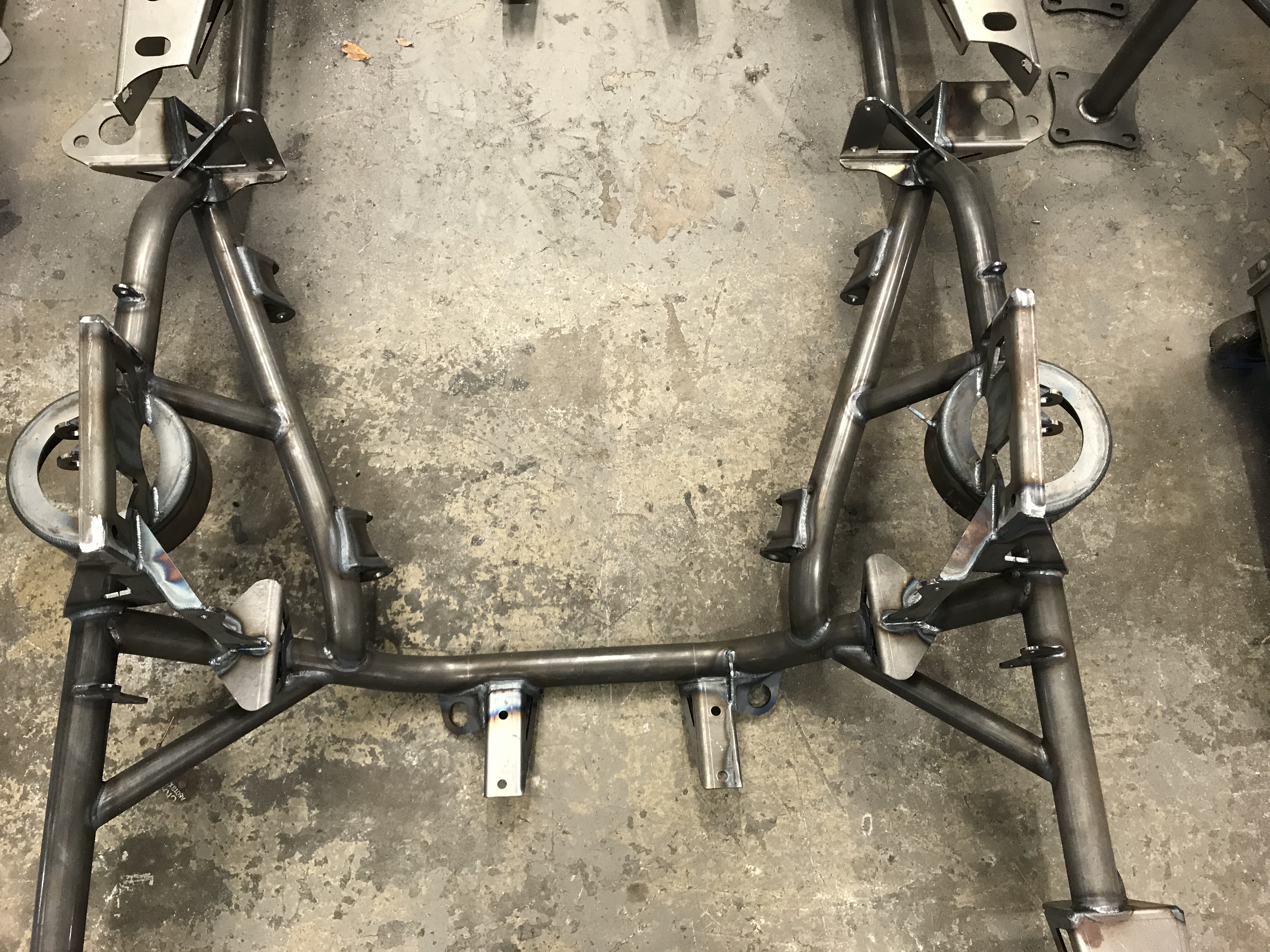

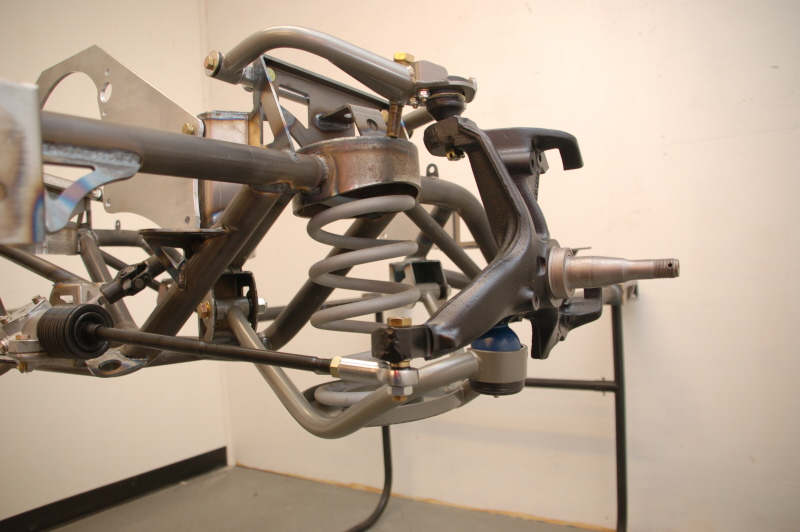

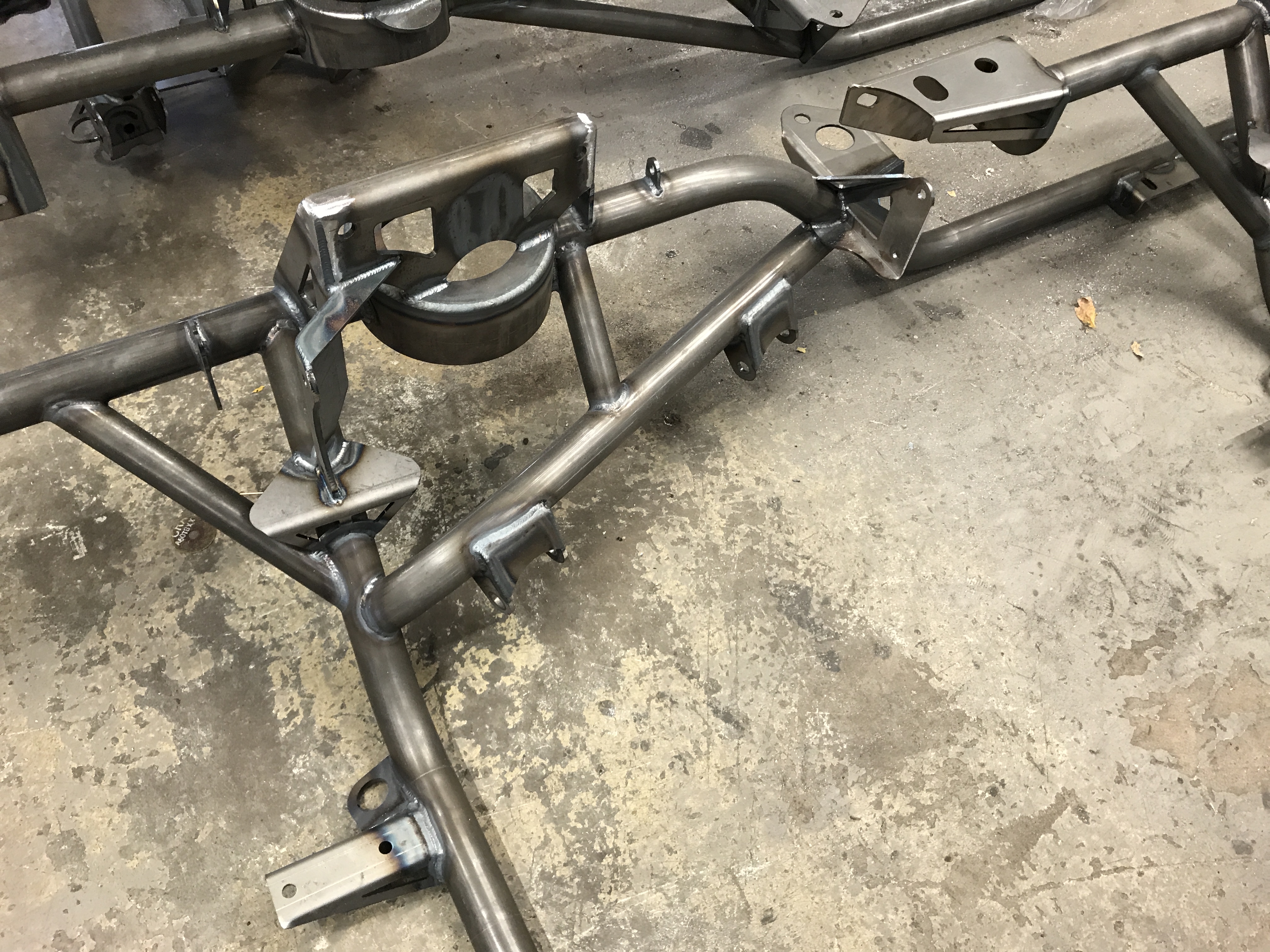

Basic Frame consists of all round tube complete with laser cut parts and tig welded as shown. Our frame will save you 150lbs immediately and give you all the caster you want and near zero bump steer. This is the best round tube frame in the market, quality is unsurpassed.
Frame Type Options
- Big Spring - Big stock spring that stores energy for small tire, lower horsepower (1000 or less) usually for weight transfer.
- Coil over - Big horsepower cars that do not need weight transfer/stored energy.
Material
- Chrome moly - Weights 58lbs with strut bars
Firewall Bar Options
- Bolt on Firewall Kit - Welded Firewall Bars on Frame with Rod Ends to adjust and bolt to firewall (Some Drilling Required)
- Firewall Bars - Not welded to frame for customer installation
- None
This frame fits 2nd Gen Camaro (70-81) and we can also modify it to fit the 4th Gen Nova (75-79). All round tube made with 4130 Chromoly. All bracketry is laser cut with lightening holes and tig welded. They are available in big spring version (stock style spring) or coil over spring. These frames are built for motor plates only.
***We are the original designer/manufacturer of these frames so be aware of cheaper imitations that lack in quality.***
Price List:
70-81 CAMARO / FIREBIRD - 75-79 NOVA FRAME
| 4130 Chromoly | $2300.00 |
| Firewall Bars & Bolt-In Kit (Optional) | $ 280.00 |
| Front Motor Plate BB or SB | $ 199.00 |
| LS Motor plate option with spacers | $ 299.00 |
| Mid Motor Plate 1/4" Aluminum | $ 199.00 |
| Mid Motor Plate 1/8" Steel | $ 155.00 |
| Big Block Spacer kit | $ 75.00 |
| Control Arms (Coilover or Stock Spring) | $ 995.00 |
| Rack & Pinion | $ 385.00 |
| Rack Mount | $ 65.00 |
| Brake line kit (hard lines) | $ 130.00 |
| Stainless Braided Brake lines | $ 55.00 |
| Steering Shaft Kit w/ U-Joints | $ 275.00 |
| Bump Steer Kit | $ 99.00 |
| Trans Crossmember PG or T400 | $ 195.00 |
| Also Available: | |
| Stock Springs Add $186.00 | |
| Coilover Springs Add $159.00 | |
| Strange Brakes (Race-Slotted) Add $975.00 | |
|
Willwood Brakes (Street-Vented) Add $997.49 Willwood-Vented/Drilled & Slotted Add $997.49 Most brands of shocks are available - Call for pricing |
|
All frames are built to order.
Powdercoating is also available for $250
Shipping is approximately $350 - $600 it varies by location
